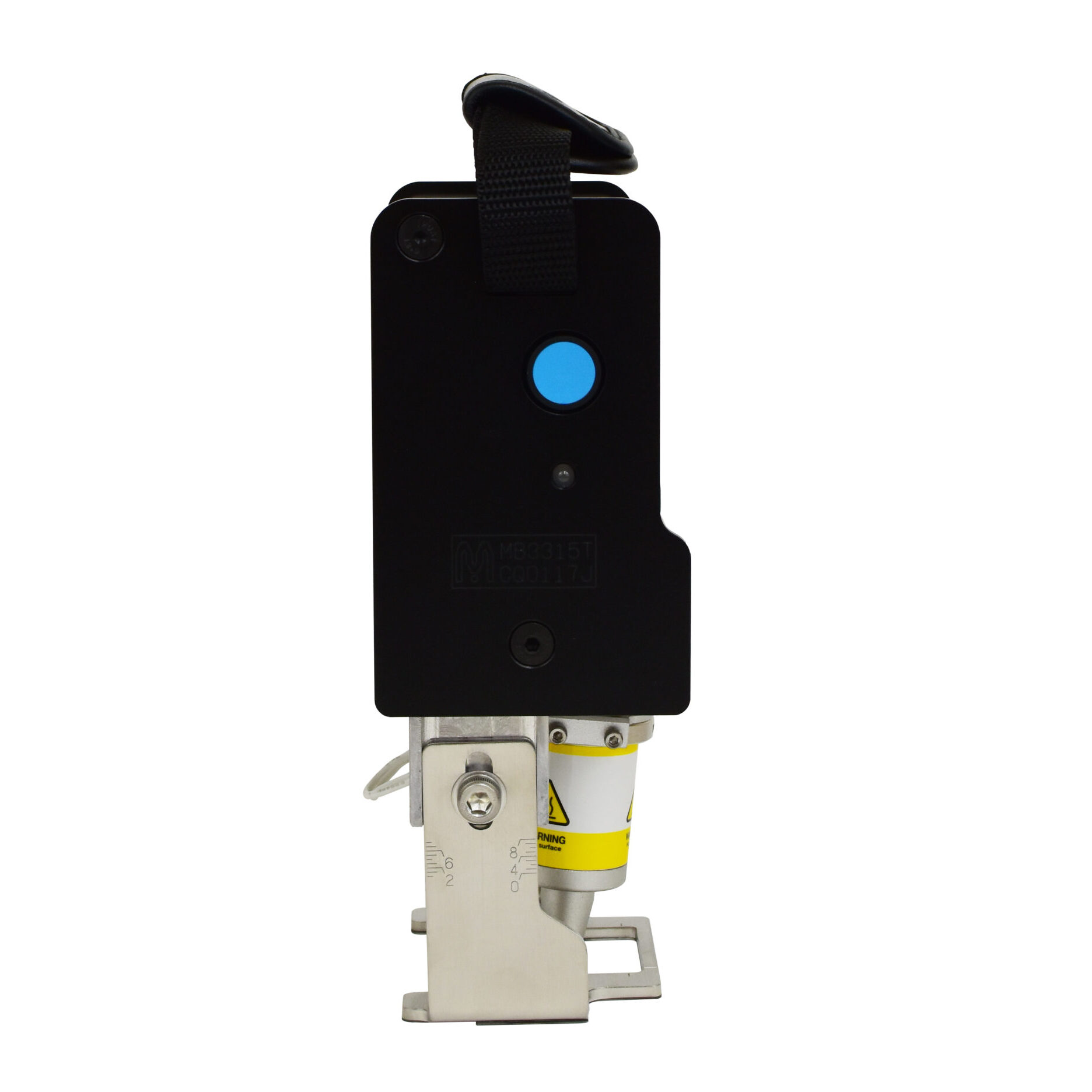

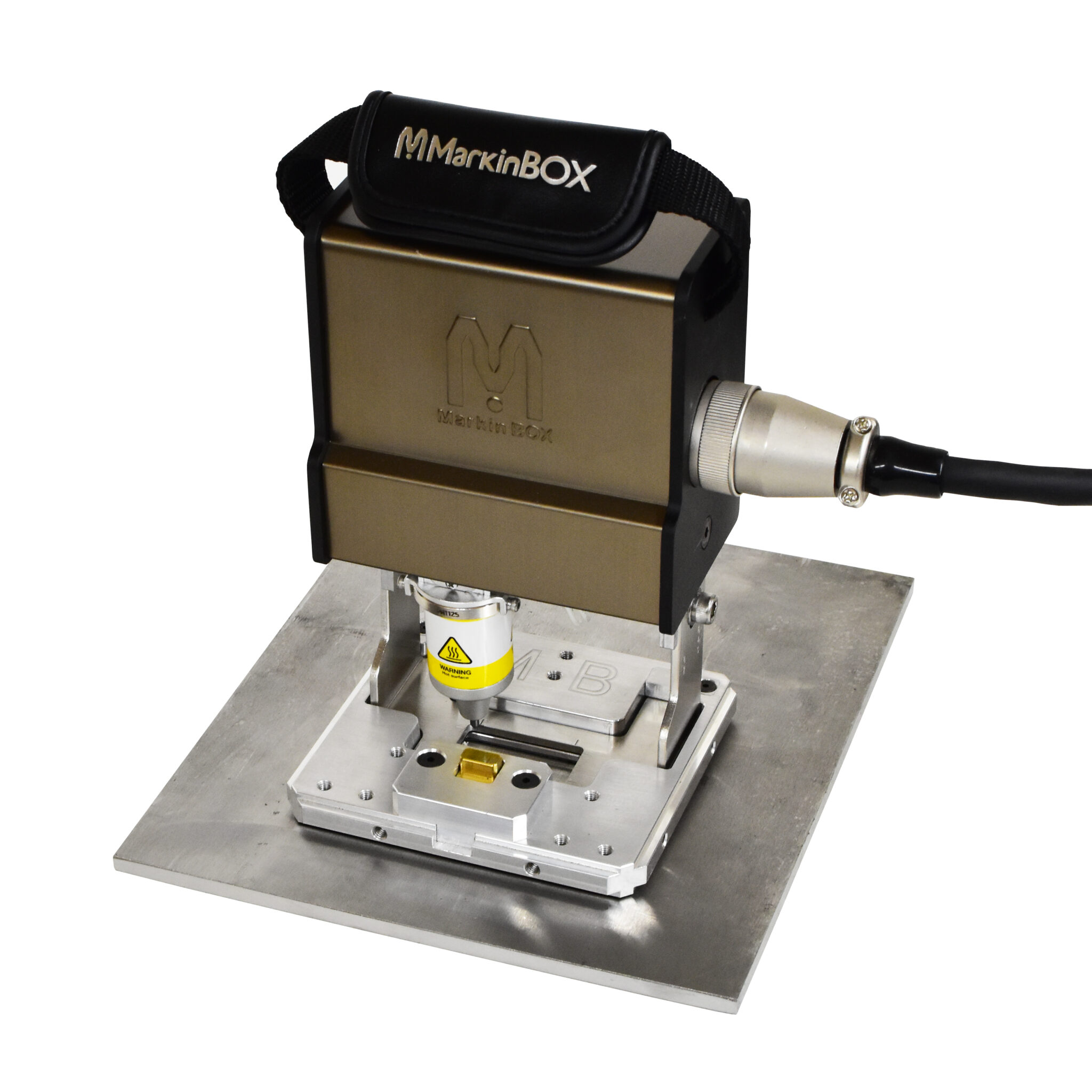

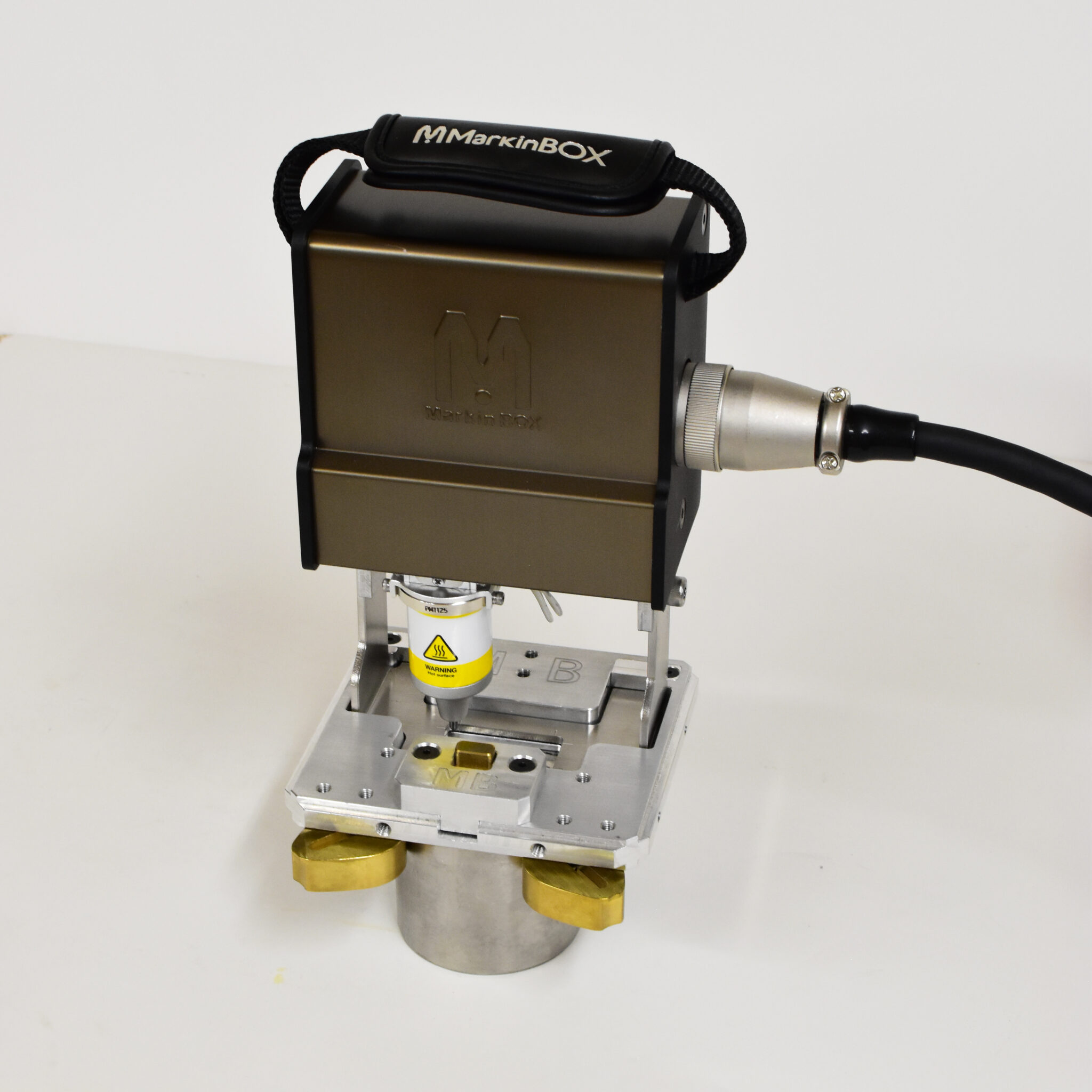

Small in size with a new metal cover, the MB3-3315T is champion in flexibility and functionality. Compact and lightweight, it can be positioned at any angle with the marking head directly on any area that needs to be marked. The model is easy to use and its ergonomic design features easy-access controls and a comfortable hand strap for stability. It is perfect for flat surface marking and can be adapted for tags, round or shaped parts.
| Marking Heads | MB3-3315T |
| Marking Area X/Y | X=33mm (1.3″) Y=15mm (0.6″) |
| Cable Length (Standard/Optional) | Std=3M(10′)/Opt=5M(16′) |
| Head Dimensions | 118(W) x 71(D) x 192(H) mm |
| Head Weight | 1.6kg (3.5lbs) |
| Standard Toolpost Dimensions/Weight | 220(W) 300(D) 573(H)mm 7kg(15.4lbs) |
| Standard & Large Toolposts Z axis Adj. | Lead Screw |

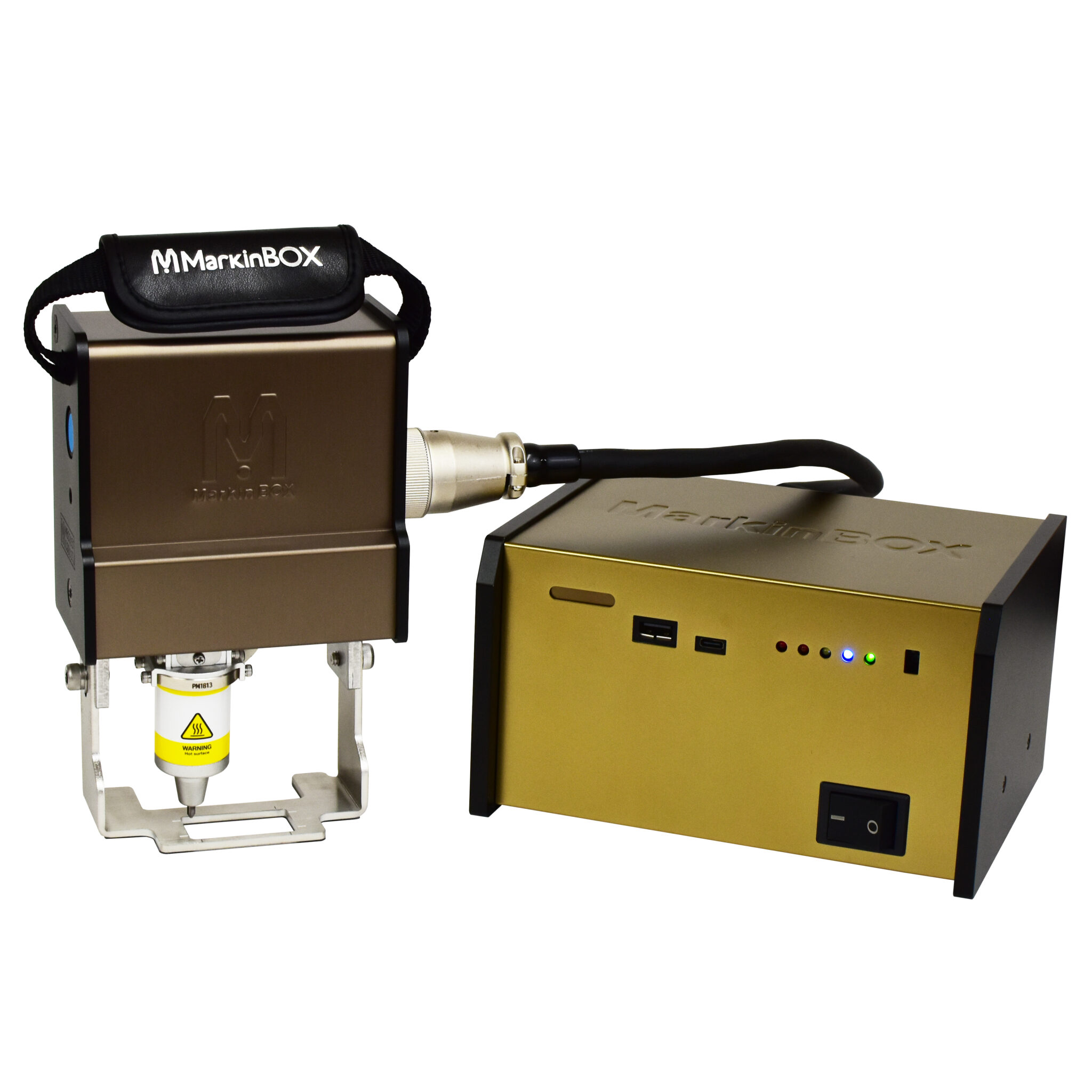

| Controller | MB3 Controller |
| Power Requirements | AC100V-240V 50/60Hz |
| Controller Dimensions | 190(W) x 144(D) x 118(H) mm |
| Controller Weight | 1.6kg (3.5lbs) |
| Connectivity Standard | USB/RS232C/LAN |
| Connectivity Options | WIFI/Ethernet IP |
| Digital Input/Output (D.I/O) | Save up to 255 Files |
| Computer Operating System Specs | Windows 11 and Higher |
| Computer Memory | 8GB and Higher |
| CPU | Intel Core 5 10th Gen and Higher |
| Monitor Resolution | 1920 x 1080 and Higher |
