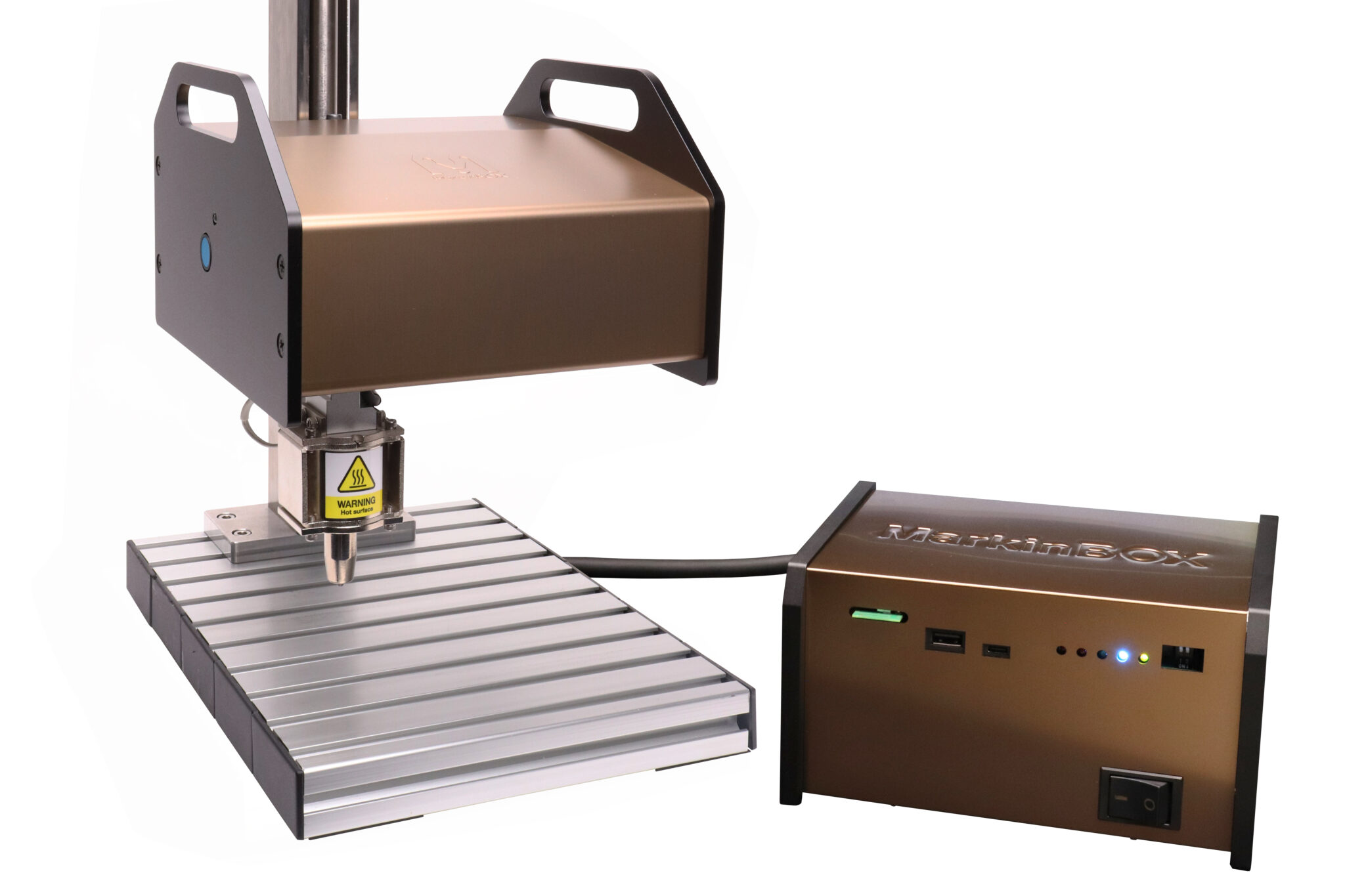

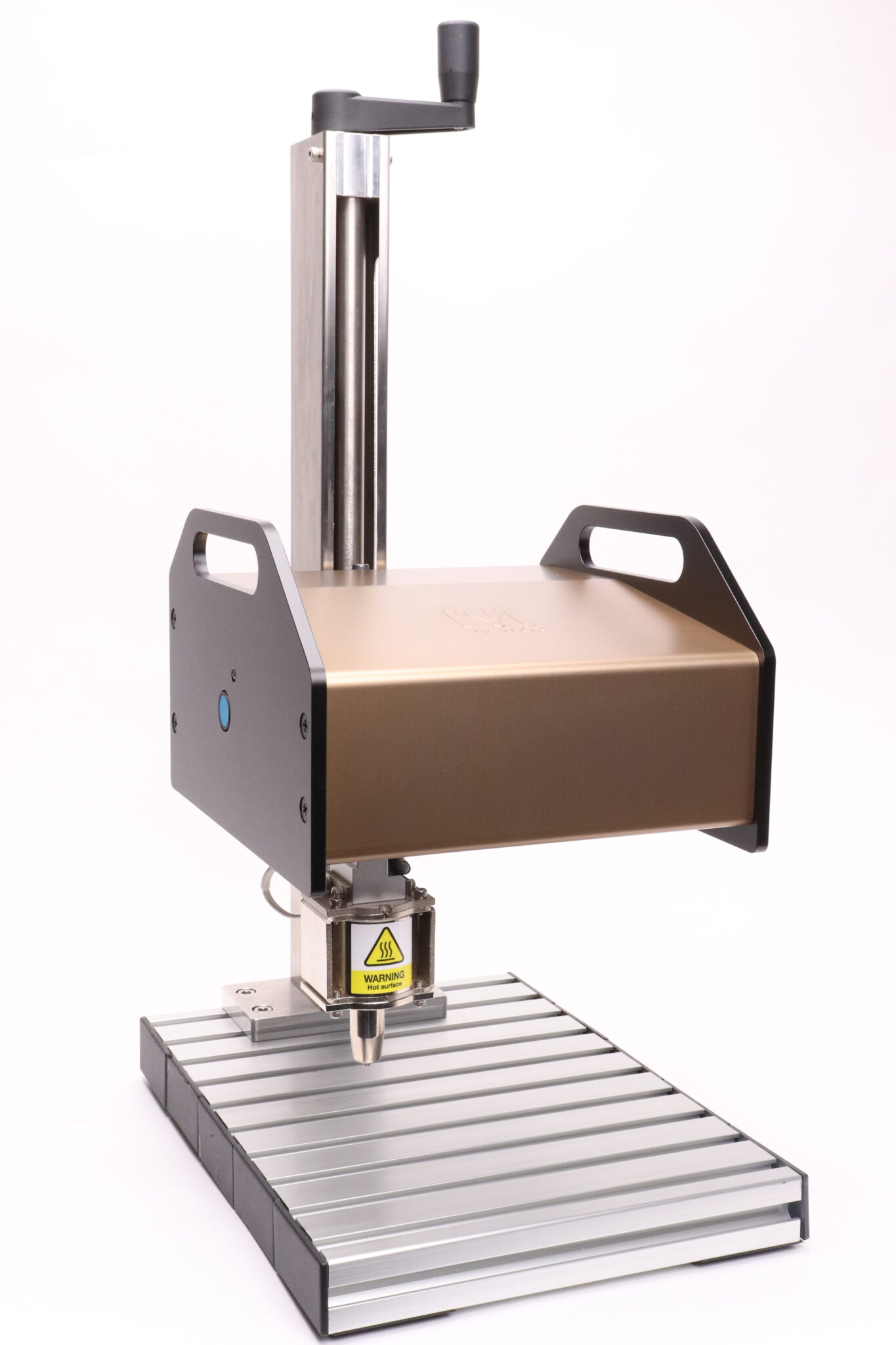

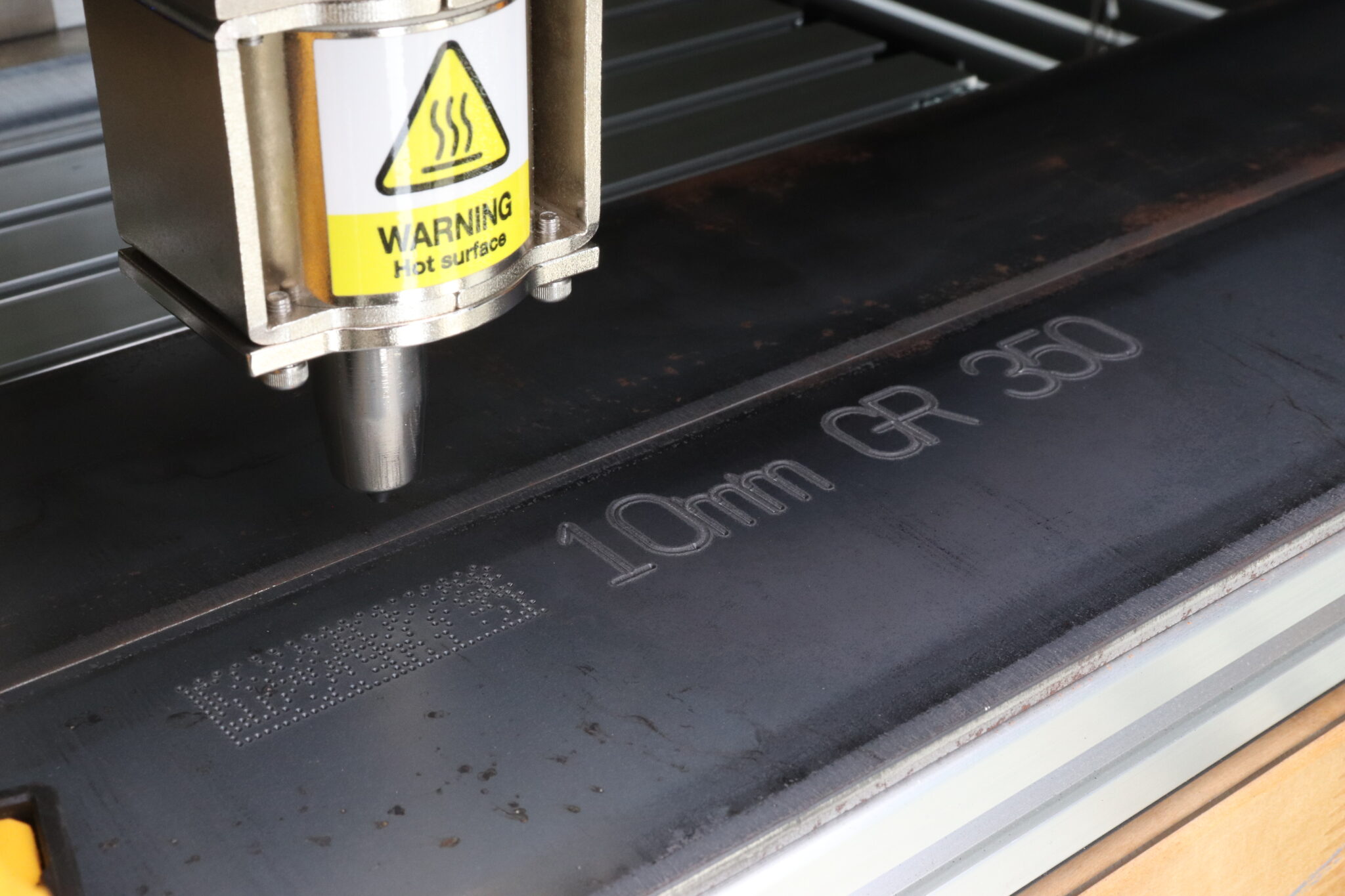

Boasting a nearly four-inch marking area (100mm X 100mm), the MB3-1010T BSD provides flexible part marking capabilities for a wide range of applications. The pin markers design allows the marking head directly on any area that needs to be marked, the BSD (big solenoid) allows for deeper and wider marks. The MB3-1010T BSD is easy to use and is ergonomically engineered with easy-access controls and comfortable handles for stability.
| Marking Heads | MB3-1010T |
| Marking Area X/Y | X=100mm (4.0″) Y=100mm (4.0″) |
| Cable Length (Standard/Optional) | Std=2M(6′)/Opt=3M(10′) |
| Head Dimensions | 200(W) x 218 (D) x 122(H) mm |
| Head Weight | 4.5kg (9.9lbs) |
| Standard Toolpost Dimensions/Weight | 220(W) 300(D) 573(H)mm 7kg(15.4lbs) |
| Large Toolpost Dimensions/Weight | 310(W) 370(D) 544(H)mm/10.7kg(23.5lbs) |
| Standard & Large Toolposts Z axis Adj. | Lead Screw |
| Controller | MB3 Controller |
| Power Requirements | AC100V-240V 50/60Hz |
| Controller Dimensions | 190(W) x 144(D) x 118(H) mm |
| Controller Weight | 1.6kg (3.5lbs) |
| Connectivity Standard | USB/RS232C/LAN |
| Connectivity Options | WIFI/Ethernet IP |
| Digital Input/Output (D.I/O) | Save up to 255 Files |
| Computer Operating System Specs | Windows 11 and Higher |
| Computer Memory | 8GB and Higher |
| CPU | Intel Core 5 10th Gen and Higher |
| Monitor Resolution | 1920 x 1080 and Higher |

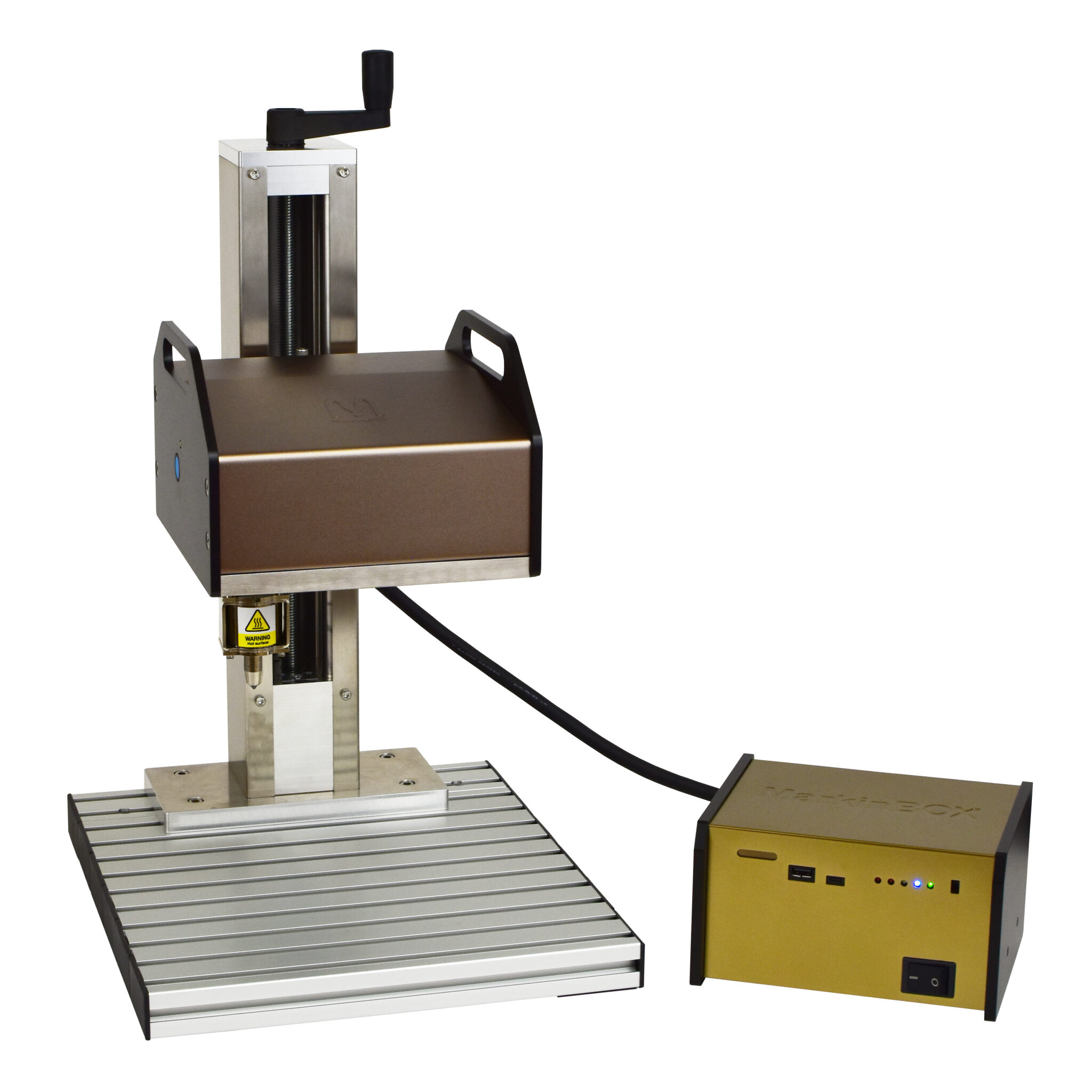

MB3-1010T BSD (click image to download .PDF)
