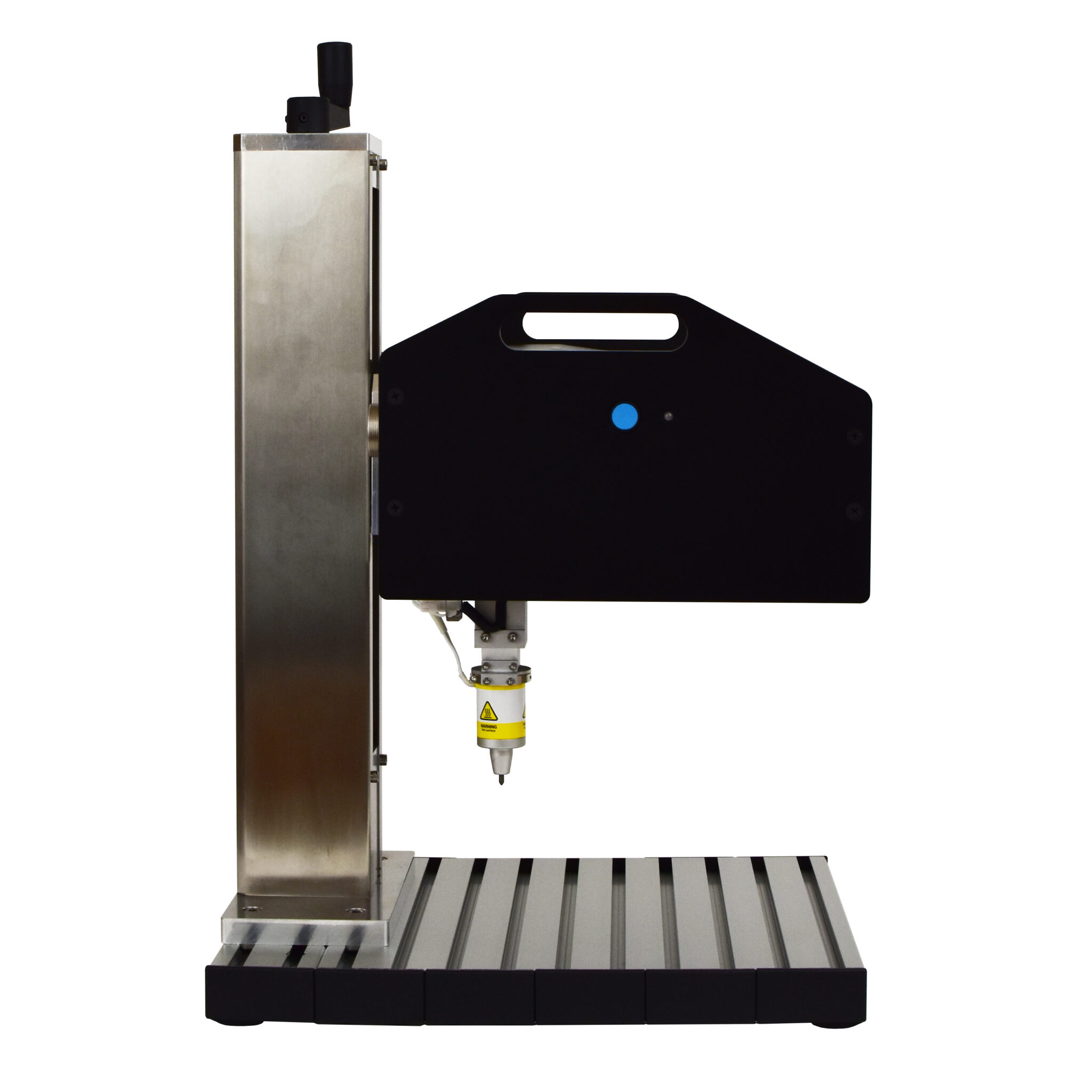

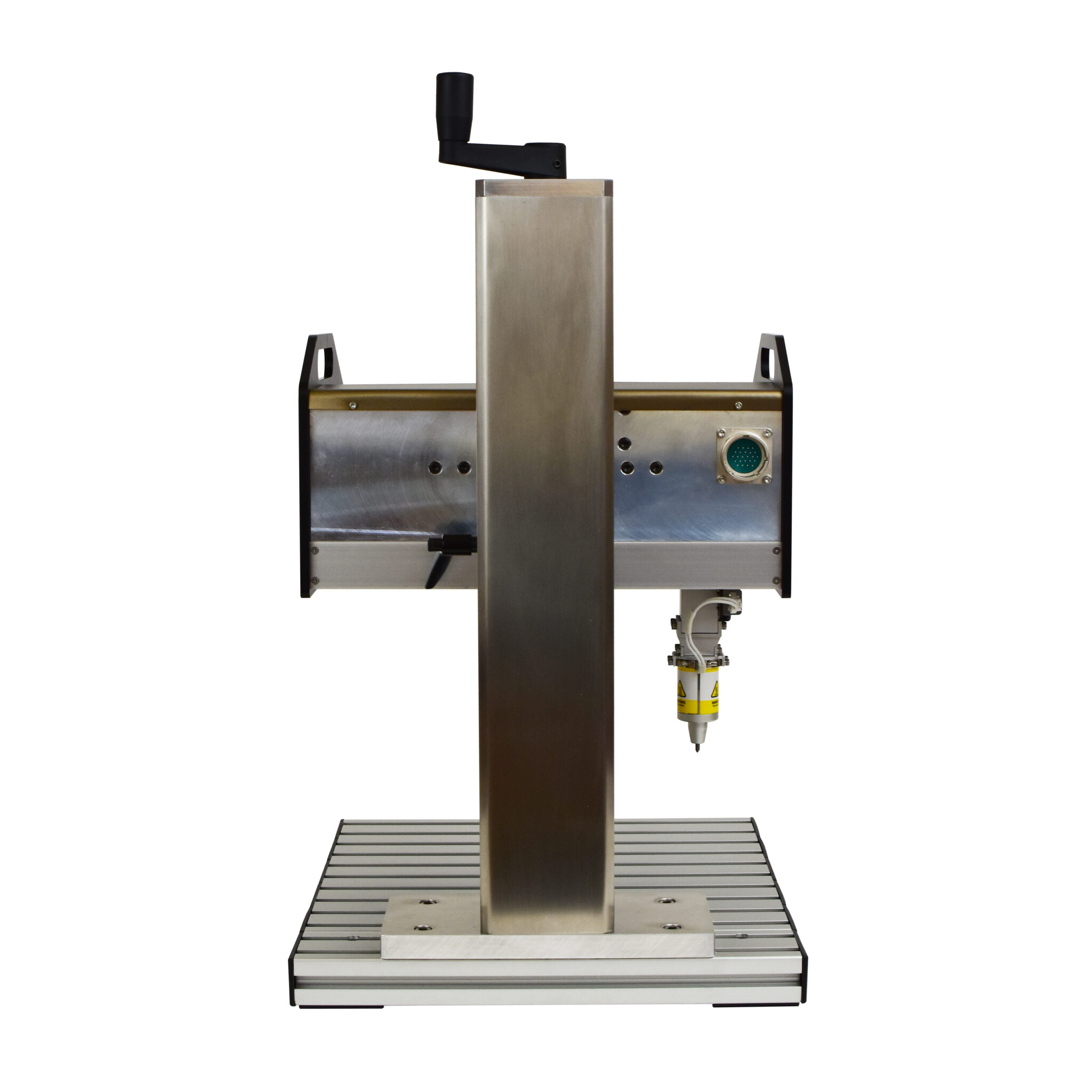

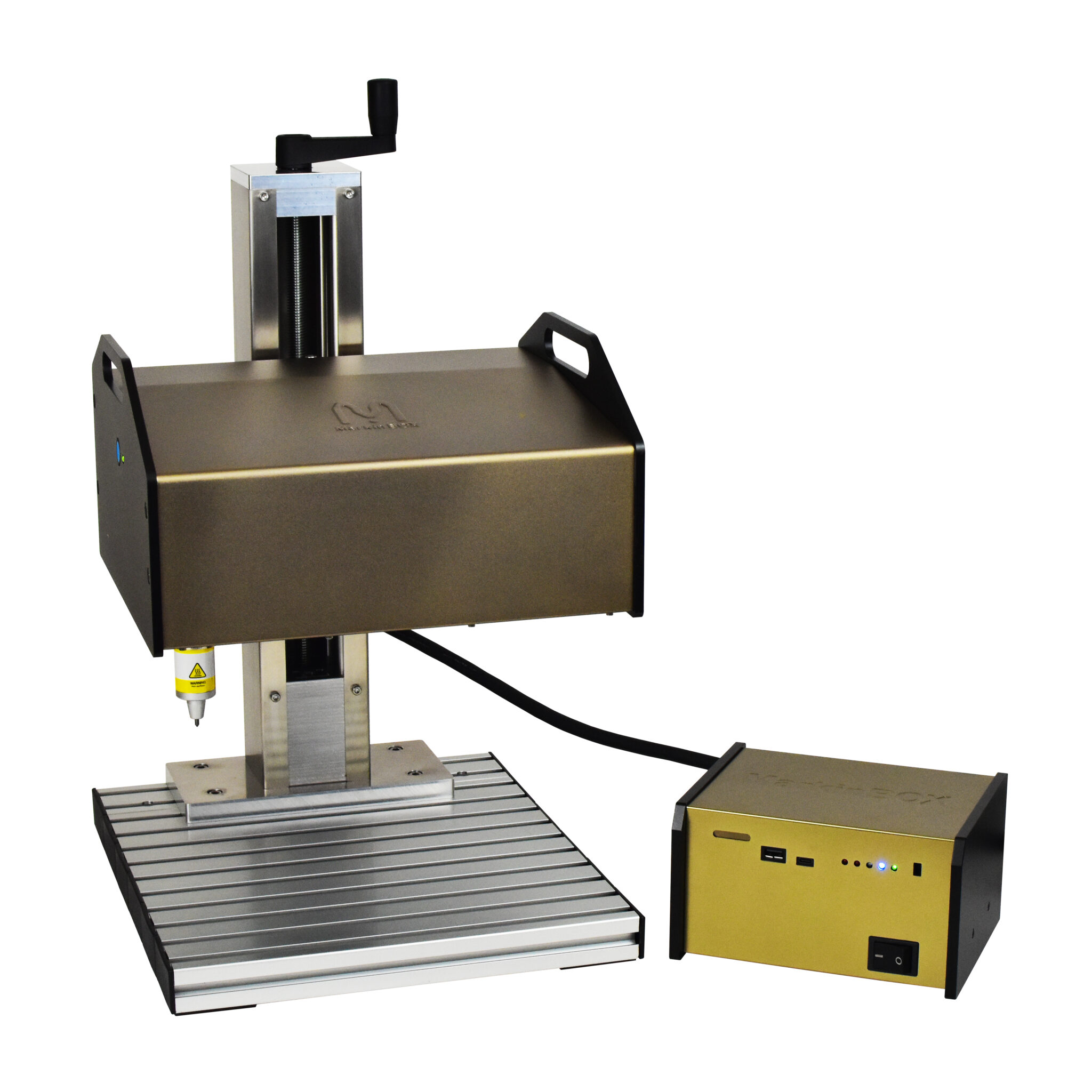

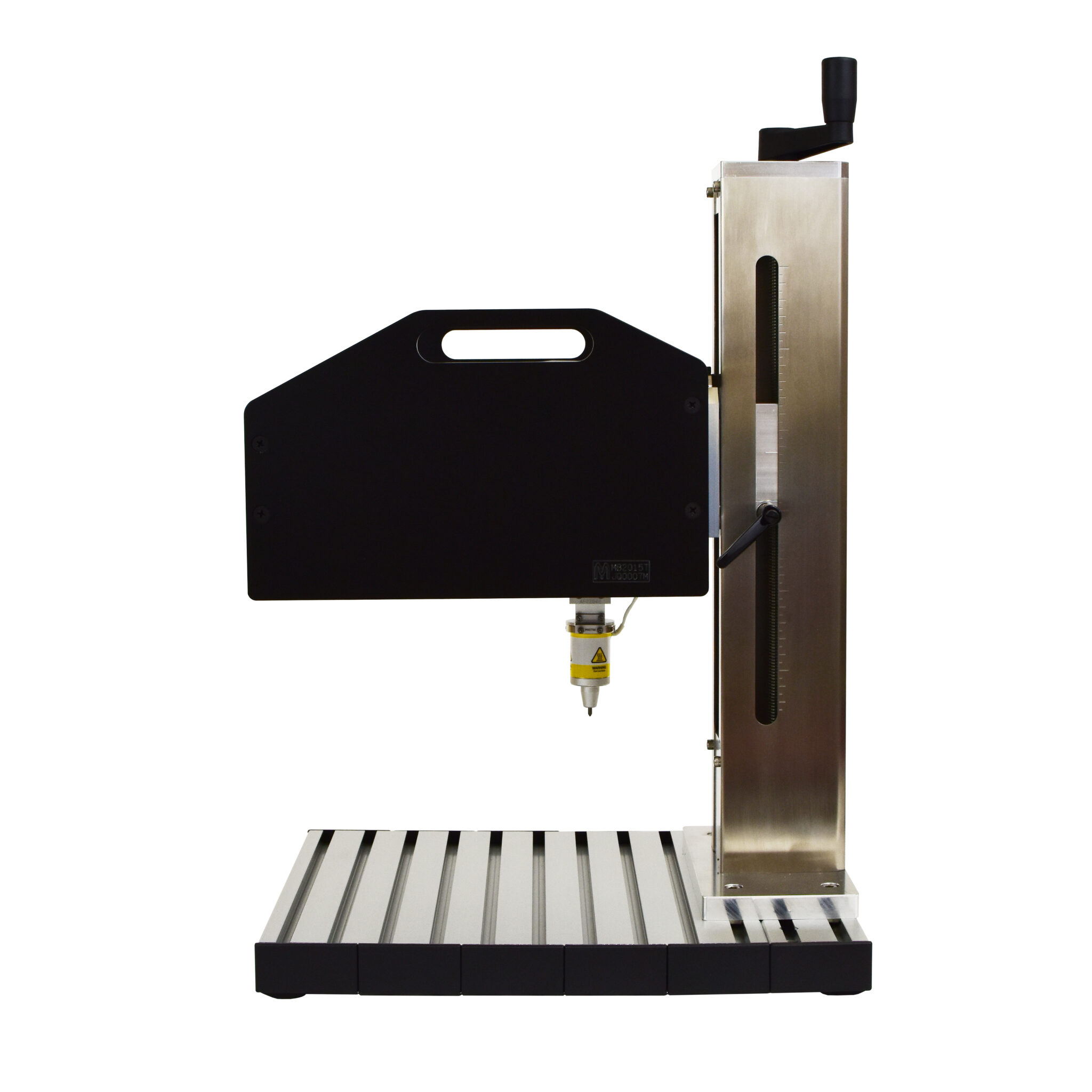

The part marking machine with the largest marking area (200mm x 150mm) the MB3-2015T provides flexible part marking capabilities for a wide range of applications. Its design allows the marking head directly on any area that needs to be marked. The MB3-2015T is most suitable for large parts, large tag marking, multiple parts or multiple tags.
| Marking Heads | MB3-2015T |
| Marking Area X/Y | X=200mm (8.0″) Y=150mm (6.0″) |
| Cable Length (Standard/Optional) | Std=2M(6′)/Opt=3M(10′) |
| Head Dimensions | 308(W) x 269(D) x 249(H) mm |
| Head Weight | 6.3kg (13.9lbs) |
| Large Toolpost Dimensions/Weight | 310(W) 370(D) 544(H)mm/10.7kg(23.5lbs) |
| Standard & Large Toolposts Z axis Adj. | Lead Screw |
| Controller | MB3 Controller |
| Power Requirements | AC100V-240V 50/60Hz |
| Controller Dimensions | 190(W) x 144(D) x 118(H) mm |
| Controller Weight | 1.6kg (3.5lbs) |
| Connectivity Standard | USB/RS232C/LAN |
| Connectivity Options | WIFI/Ethernet IP |
| Digital Input/Output (D.I/O) | Save up to 255 Files |
| Computer Operating System Specs | Windows 11 and Higher |
| Computer Memory | 8GB and Higher |
| CPU | Intel Core 5 10th Gen and Higher |
| Monitor Resolution | 1920 x 1080 and Higher |
MB3-2015T (click image to download .PDF)
(click image to download .PDF)
(click image to download .PDF)
