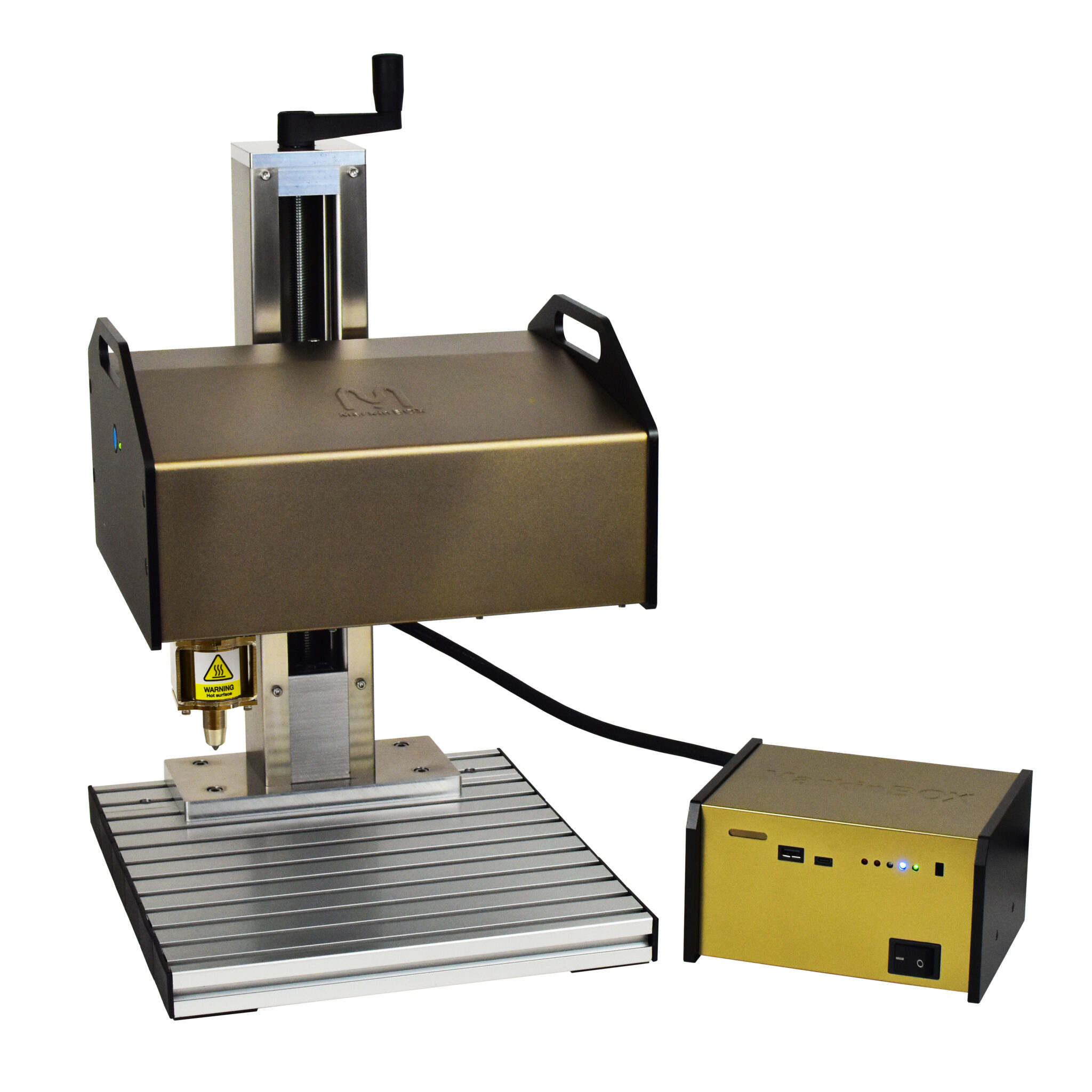

The part marking machine with the largest marking area (200mm x 150mm) the MB3-2015T BSD provides flexible part marking capabilities for a wide range of applications. Its design allows the marking head directly on any area that needs to be marked, and the BSD (big solenoid) allows for deeper and wider marks. The MB3-2015T is most suitable for large parts, large tag marking, multiple parts or multiple tags.
| Marking Heads | MB3-2015T |
| Marking Area X/Y | X=200mm (8.0″) Y=150mm (6.0″) |
| Cable Length (Standard/Optional) | Std=2M(6′)/Opt=3M(10′) |
| Head Dimensions | 308(W) x 269(D) x 249(H) mm |
| Head Weight | 6.3kg (13.9lbs) |
| Large Toolpost Dimensions/Weight | 310(W) 370(D) 544(H)mm/10.7kg(23.5lbs) |
| Standard & Large Toolposts Z axis Adj. | Lead Screw |
| Controller | MB3 Controller |
| Power Requirements | AC100V-240V 50/60Hz |
| Controller Dimensions | 190(W) x 144(D) x 118(H) mm |
| Controller Weight | 1.6kg (3.5lbs) |
| Connectivity Standard | USB/RS232C/LAN |
| Connectivity Options | WIFI/Ethernet IP |
| Digital Input/Output (D.I/O) | Save up to 255 Files |
| Computer Operating System Specs | Windows 11 and Higher |
| Computer Memory | 8GB and Higher |
| CPU | Intel Core 5 10th Gen and Higher |
| Monitor Resolution | 1920 x 1080 and Higher |
MB3-2015T BSD (click image to download .PDF)
(click image to download .PDF)
(click image to download .PDF)
