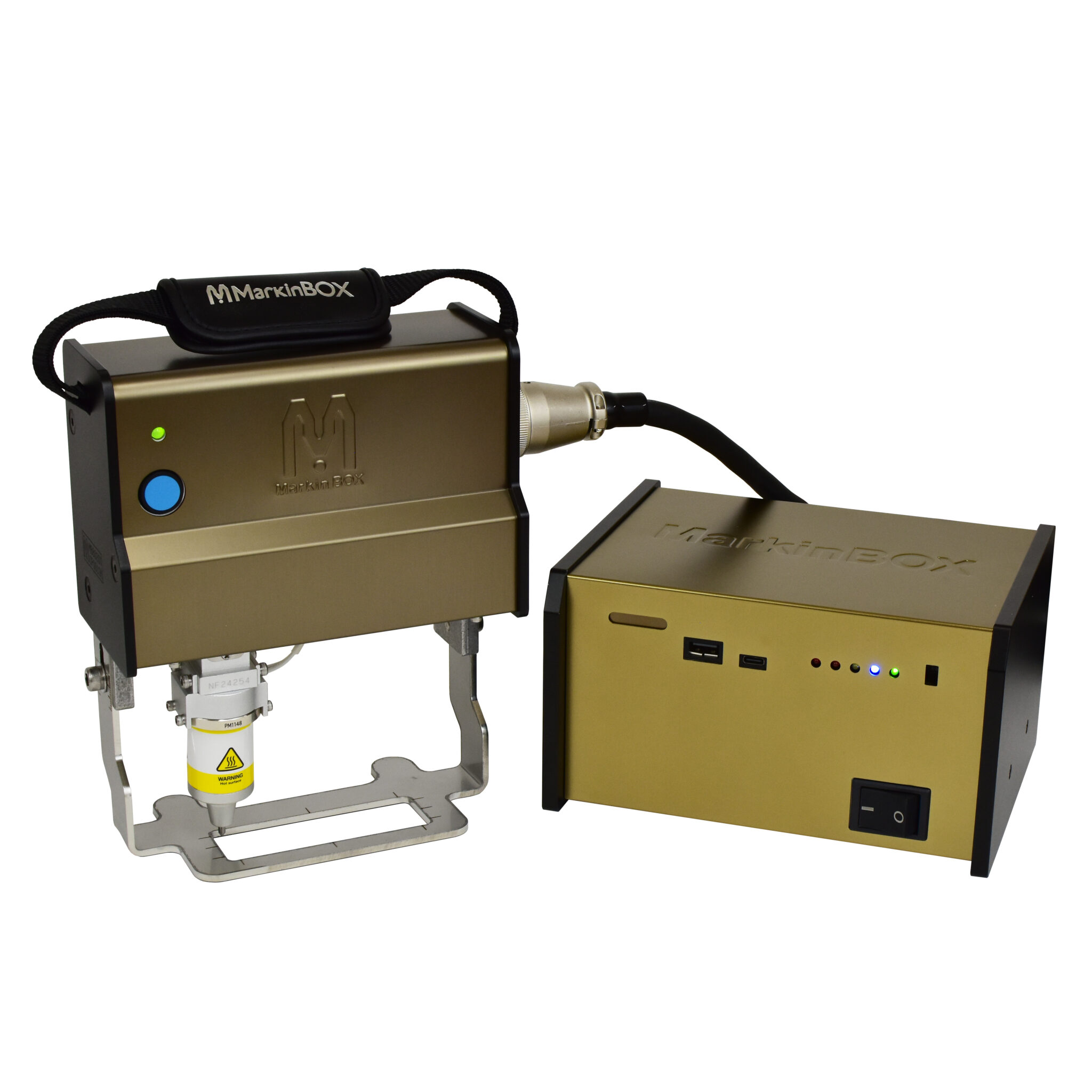

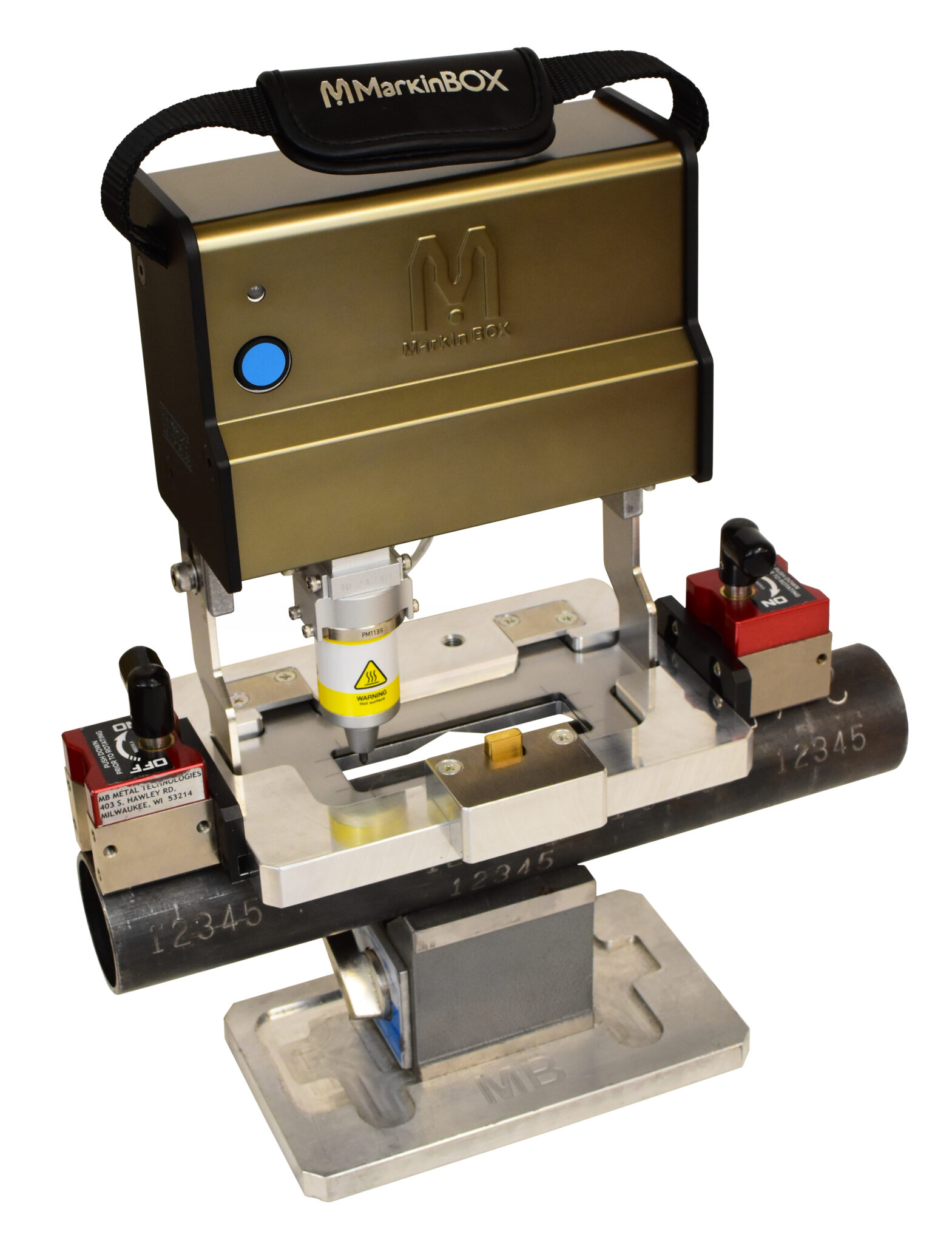

The new MB3-8020T part marking machine is ergonomically designed for operator comfort and easy to incorporate into your manufacturing process. The model is easy to use and its ergonomic design features easy-access controls and a comfortable hand strap for stability. It is perfect for flat surface marking and can be adapted for tags, round or shaped parts.
| Marking Heads | MB3-8020T |
| Marking Area X/Y | X=80mm (3.1″) Y=20mm (0.8″) |
| Cable Length (Standard/Optional) | Std=3M(10′)/Opt=5M(16′) |
| Head Dimensions | 168(W) x 81(D) x 212(H) mm |
| Head Weight | 2.2kg (4.8lbs) |
| Standard Toolpost Dimensions/Weight | 220(W) 300(D) 573(H)mm 7kg(15.4lbs) |
| Standard & Large Toolposts Z axis Adj. | Lead Screw |
| Controller | MB3 Controller |
| Power Requirements | AC100V-240V 50/60Hz |
| Controller Dimensions | 190(W) x 144(D) x 118(H) mm |
| Controller Weight | 1.6kg (3.5lbs) |
| Connectivity Standard | USB/RS232C/LAN |
| Connectivity Options | WIFI/Ethernet IP |
| Digital Input/Output (D.I/O) | Save up to 255 Files |
| Computer Operating System Specs | Windows 11 and Higher |
| Computer Memory | 8GB and Higher |
| CPU | Intel Core 5 10th Gen and Higher |
| Monitor Resolution | 1920 x 1080 and Higher |
MB3-8020T (click image to download .PDF)
