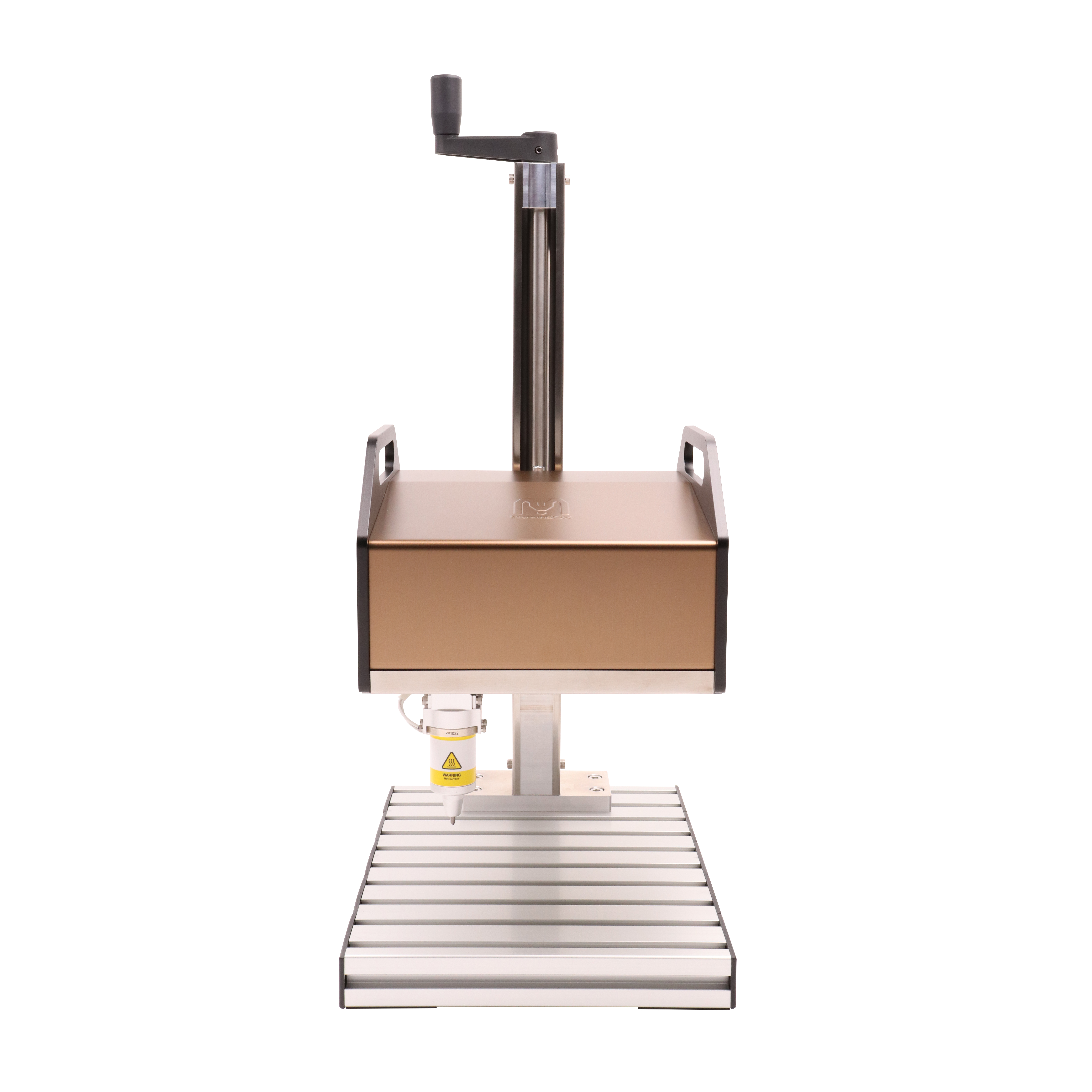

Boasting a nearly four-inch marking area (100mm X 100mm), the MB3-1010T provides flexible part marking capabilities for a wide range of applications. Its design allows the marking head directly on any area that needs to be marked. The MB3-1010T is easy to use and is ergonomically engineered with easy-access controls and comfortable handles for stability.
| Marking Heads | MB3-1010T |
| Marking Area X/Y | X=100mm (4.0″) Y=100mm (4.0″) |
| Cable Length (Standard/Optional) | Std=2M(6′)/Opt=3M(10′) |
| Head Dimensions | 200(W) x 218 (D) x 122(H) mm |
| Head Weight | 4.5kg (9.9lbs) |
| Standard Toolpost Dimensions/Weight | 220(W) 300(D) 573(H)mm 7kg(15.4lbs) |
| Large Toolpost Dimensions/Weight | 310(W) 370(D) 544(H)mm/10.7kg(23.5lbs) |
| Standard & Large Toolposts Z axis Adj. | Lead Screw |
| Controller | MB3 Controller |
| Power Requirements | AC100V-240V 50/60Hz |
| Controller Dimensions | 190(W) x 144(D) x 118(H) mm |
| Controller Weight | 1.6kg (3.5lbs) |
| Connectivity Standard | USB/RS232C/LAN |
| Connectivity Options | WIFI/Ethernet IP |
| Digital Input/Output (D.I/O) | Save up to 255 Files |
| Computer Operating System Specs | Windows 11 and Higher |
| Computer Memory | 8GB and Higher |
| CPU | Intel Core 5 10th Gen and Higher |
| Monitor Resolution | 1920 x 1080 and Higher |
MB3-1010T (click image to download .PDF)
(click image to download .PDF)
(click image to download .PDF)
